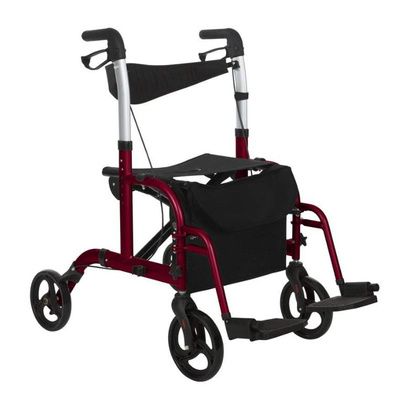

Vive Mobility Wheelchair Rollator

Features of Vive Wheelchair Rollator

• Corrosion-resistant, the lightweight aluminum frame safely supports up to 300 pounds
• Easily customize the handle height for a comfortable fit for any individual
• Safely maneuver inclines with the ergonomic hand brakes and easily lock wheels in place when seated for added stability and security

What to buy with Vive Rollator Walker

• Vive Mobility Clip-on Cupholder
• EZ-Step Stair Climbing Cane
• EHOB Waffle Seat Cushion

How to Assemble Vive Folding Rollator Walker?

• Remove the Elastic Loop Strap from the one Front Seat Pegs on the Rollator Frame, but keep it fixed to the other peg. This loop can be wrapped around the Front Seat Pegs to help secure the rollator together if it's folded together. Now you can unfold the Rollator Frame.
• Remove all 4 Screw Knobs from the Rollator Frame and set them aside.
• Turn the Rollator Frame over to access the circular sockets for the Front Wheels.
• Fit one Front Wheel Assembly into the circular socket. Check that the screw holes in the Wheel Assembly post and the frame are aligned, and then secure with a Screw Knob. Make sure the black knob handle is oriented outside of the frame.
• Repeat Step 4 with the other Front Wheel Assembly and the other circular socket.
• Fit the Rear Wheel Assembly labeled A into the oval socket labeled A. Ensure that both labels are facing the same direction.
• Pinch the Locking Pins on the Rear Wheel Assembly while pushing the piece down into the oval socket until the pins spring into place with an audible click.
• Secure the hole below the Locking Pins with a Screw Knob.
• Repeat Steps 6, 7, and 8 with the Rear Wheel Assembly and oval socket labeled D.
• Stand the Rollator up on all 4 wheels.
• Fit the plastic Cane Holder Cup over and down onto the peg to secure it in place.
• Fit a Foot Rest over and down onto two of the metal attachment pins, and rotate inward until the silver clasp locks the Foot Rest in place.
• NOTE: To fold the Footrest, pull the back of the silver clasp forward and around to unlatch the clasp and allow the Foot Rest to swing out and fix into place with the plastic clip on the outside of the chair frame.
• Repeat Step 12 with the other Foot Rest.
• Hang the bag onto the two front seat pegs using the fabric loops on the top corners.

Braking:

• Walker is equipped with a dual wheel braking system
• To adjust the brakes, turn cable adjuster located on the handbrake

Adjusting Handle Height:

• Handle height can be adjusted in 1" increments with the push pins located on the sides of the rollator

When to use Vive Mobility Wheelchair Rollator?

• Mobility issues
• Balance disorder
• Leg injury

Care Instructions of Vive Mobility Rollator

• Wipe down with a damp cloth and disinfectant solution as necessary
• Dry immediately with a lint-free cloth

User Manual of Vive Mobility Wheelchair Rollator
