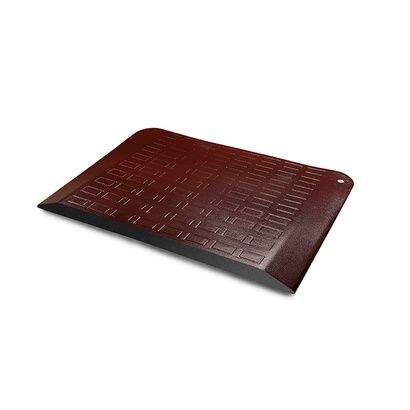

EZ Edge Rubber Threshold Ramp Features
- Made in USA
- UV stable
- Unlimited weight capacity
- Easily washed with soap and water
- Used for interior and exterior applications
- Door Ramp is durable and maintenance-free
- Threshold Ramp has superior slip resistance
- Ideal for wheelchair access to homes or businesses
- Only EZ Edge Ramp to exceed ADA requirements in the market
- Quick installation of Safepath EZ Edge Portable Rubber Ramp significantly reduces labor costs
- Versatile rubber design accommodates a step or door jamb from 1/2" to 2-3/4" high
Note - Ramp with 74.25" width or more comes in two pieces.
Frequently Bought Together
How to Install EZ Edge Threshold Ramp?
- It is imperative that your substrate is clean and free of debris before beginning installation. A clean, dry substrate ensures maximum adhesion.
- Dry fit the product by placing it flush against the threshold
- Use painter's tape to outline the rubber ramp
- Remove ramp
- Generously apply adhesive to the substrate. For best results, apply with a caulking gun, then use a notched cement/grout hand trowel to spread evenly
- Replace ramp onto the adhesive surface
- Apply pressure to ramp evenly. Some glue may leak out onto the tape
- After rubber ramp is in place with adhesive, carefully remove painter tape
- Excess adhesive can be cleaned with the substrate or product by applying acetone or paint thinner
Warnings:
- Do not use a power circular saw to cut ramp
- Use of any electrical, battery, or pneumatic-powered circular saw may result in serious injury due to unexpected binding, grabbing, or pinching of ramp material
Where to use the Transition Rubber Threshold Ramp?
- Almost any threshold can be made accessible quickly and effortlessly.
- Gym floors and doorways are made compliant in minutes with solid rubber ramps, removing tip hazards.
- Single, double, or even roll-up doors become accessible quickly and easily and do not have any weight limitations.
- Every accessible route, either interior or exterior, can instantly be made ADA-compliant.
- Exterior and interior entrances, balconies, storage units, and garages are made accessible and compliant with EZEdge ramps.
- Surround field turf and sports flooring with our EZEdge ramps, making every thru-way accessible and safe.
Frequently Asked Questions
1. What is a SafePath EZ Edge Transition Rubber Threshold Ramp?
SafePath EZ Edge Transition Rubber Threshold Ramp is a durable and flexible ramp designed to provide a smooth transition over thresholds, curbs, or uneven surfaces for wheelchairs, scooters, walkers, and other mobility aids.
2. How is the wheelchair threshold ramp measured?
- Measure the rise of the threshold
- Measure the width of the door or entry
- Measure how far the ramp can extend from the door
3. What is the use of the threshold ramp?
A wheelchair threshold ramp is used to help wheelchairs cross over rough surfaces. They provide a sturdy, slightly inclined platform to make it easy to cross over raised landings, doorways, or curbs. They can be used in doorways, small steps, or raised curbs
4. What is the weight capacity of Safepath EZ Edge Ramps?
Safepath EZ Edge Transition Rubber Threshold Ramp has no weight limit.
EZ Edge Rubber Threshold Ramp Specification
Item # |
Height |
Depth |
Width |
Weight |
ERC 0010 |
0.5" |
3.25" |
41.5" |
3 lbs. |
ERC 0040 |
0.5" |
3.25" |
74.25" |
5 lbs. |
ERC 0050 |
0.75" |
7" |
46" |
8 lbs. |
ERC 0080 |
0.75" |
7" |
82" |
15 lbs. |
ERC 0110 |
0.88" |
8" |
46" |
9 lbs. |
ERC 0140 |
0.88" |
8" |
82" |
17 lbs. |
ERC 1150 |
1" |
10" |
46" |
13 lbs. |
ERC 1180 |
1" |
10" |
82" |
24 lbs |
ERC 1110 |
1.25" |
13.5" |
46" |
21 lbs. |
ERC 1140 |
1.25" |
13.5" |
82" |
38 lbs. |
ERC 1310 |
1.5" |
18" |
46" |
32 lbs. |
ERC 1340 |
1.5" |
18" |
82" |
56 lbs. |
ERC 1510 |
1.75" |
21.5" |
46" |
39 lbs. |
ERC 1540 |
1.75" |
22" |
82" |
78 lbs. |
ERC 2100 |
2" |
24.75" |
46" |
48 lbs. |
ERC 2130 |
2" |
24.75" |
82" |
81 lbs. |
ERC 2150 |
2.25" |
29.5" |
46" |
63 lbs. |
ERC 2160 |
2.25" |
29.5" |
82" |
118 lbs. |
ERC 2170 |
2.25" |
29.5" |
46" |
78 lbs. |
ERC 2180 |
2.5" |
30.5" |
82" |
144 lbs. |
ERC 2190 |
2.75" |
34.75" |
46" |
90 lbs. |
ERC 2195 |
2.75" |
33.75" |
82" |
168 lbs. |
Warranty
10 Year Warranty.
