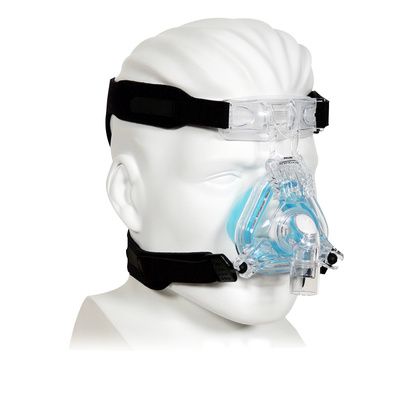

Respironics ComfortGel Blue Nasal Mask with Premium Headgear

ComfortGel Blue Nasal Mask Features

What to buy with ComfortGel Nasal Mask

• AIRFREE P1000 Filterless Air Purifier
• DreamStation Auto CPAP Machine
• Respironics Chin Strap For CPAP Mask
• Respironics Amara Full Face Replacement Gel Cushion

How to use Respironics ComfortGel Blue Nasal Mask?

Preparing the ComfortGel Blue Nasal Mask for fitting

Loosen the straps on the headgear by adjusting the Velcro tabs.


Gently squeeze the sides of the StabilitySelector and slide the arm upward to set the forehead support arm to its highest position.


Disconnect one side of the headgear by releasing one ball-and-socket Quick Clip from the faceplate socket.




Making initial adjustments

Make initial adjustments while sitting. Place the mask cushion against the face.


Pull the headgear over the head.


Attach the Quick Clip on the disconnected side. For easy attachment of the Quick Clip, use the index finger as a guide to find the position of the socket and press the clip into the socket.




Adjust both of the upper headgear straps by using the tabs. Be sure that they are tightened evenly and the forehead pad is lightly touching the forehead.


Adjust the bottom headgear straps by using the tabs. Be sure that they are tightened evenly and the mask is gently sitting on the face. Do not over-tighten the headgear.


Be sure that the headgear straps are parallel and the headgear is fully extended and flat across the back of the head.




Making Final Adjustments

Connect the tubing to the swivel elbow and turn on the air.


Make final adjustments while lying down.
If the forehead pad does not rest lightly against the forehead, adjust the upper headgear strap


If necessary, adjust the bottom headgear strap so that the mask is snug but comfortable against the face. Do not over-tighten the headgear.




How to identify Leaks while using ComfortGel Nasal Mask

Raise the pressure to the prescribed level and turn the head from side to side while lying on the bed.
Identify areas of leak that may prevent the ability to sleep.






Adjusting for Leaks

In the event of leaks, follow these recommended methods to obtain a better seal:

1. Re-seat the mask. Pull the mask directly away from the face and gently set it back into place. This allows the cushion to create a new seal on the face.
2. Adjust the forehead support arm StabilitySelector to correct leaks. This is an important step in the fitting process.
3. Problem: Leaks around the bridge of the nose or into the eyes.
   Solution: Adjust the forehead support arm to a lower position by gently squeezing the arms of the Stability Selector and sliding it downward to a lower position. This will bring the top of the cushion closer to the face. If necessary, re-seat the mask again.
4. Problem: Leaks below the nose or near the lip.
   Solution: Adjust the forehead support arm to a higher position by gently squeezing the arms of the Stability Selector and sliding it upward to a higher position. This will bring the bottom of the cushion closer to the face. If necessary, re-seat the mask again.
5. Tighten the headgear. If leaks are still present, apply pressure with the fingers directly to the mask in the location of the leak. If this eliminates the leak, tighten the headgear straps closest to the leak to accommodate the seal. Do not over-tighten the headgear. Note: Excessive tightening of the headgear may cause unnecessary discomfort and leaks. Remember, not all leaks need to be corrected.

How to remove Respironics ComfortGel Nasal Mask

• To remove the mask, disconnect one or both ball-and-socket Quick Clip(s). Grab the bottom of the headgear on the back of the head and pull the mask gently up and over the head.
• Use the Quick Clip to remove the mask and maintain mask and headgear adjustments from day-to-day.

For more information please checkout Respironics ComfortGel Blue Nasal Mask
