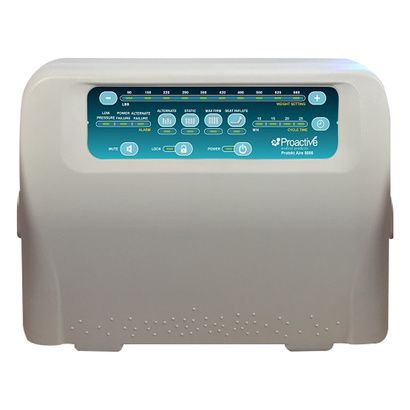

Proactive Protekt Aire 8000BA Pump

Features

• Proactive Protekt Aire 8000BA Pump cycle time: 10,15,20 and 25 minutes, selectable
• Air Volume: 15 liters per minute
• Pump Dimensions: 13.4"x4.9"x9.7"
• Power: 120 VAC
• Input Frequency: 60Hz
• Pressure Range: 20-70 mmHg
• Weight: 8.8 lbs
• Also available (sold separately):
  - Proactive Protekt Aire 8000BA Low Air Loss and Alternating Pressure Bariatric Mattress System (Code: 80080, 80085)

More Information

• Power Switch:
  - The switch is at the right side of the unit.
  - Turn ON/OFF the power, the unit will start/stop operation.
• Pressure-selector Knob:
  - Turn the knob from the soft to firm position to select a pressure value.
• Pressure-selector Touch Panel:
  - There are ten pressure levels on the touch panel, providing options of pressure value.
• Normal Pressure LED:
  - Indicates the pressure has reached a set level.
• Low Pressure LED:
  - Indicates the pressure is below a set level. The alarm will turn on at the same time.
• Cycle Time-selector Touch Panel:
  - Select a desired alternating cycle time from the touch panel. The cycle time value can be 10, 15, 20 or 25 minutes. There are two LEDs for each time value.
• Alarm Mute:
  - The alarm will turn on when the Low Pressure LED is on.
  - To mute the alarm, simply press the mute button. The Alarm LED will flash
  - Re-press the mute button to reactivate the audible alarm.
• Static/Alternating control:
  - Set the air mattress in static mode or alternating mode.
• Max firm:
  - Set the air mattress to auto-inflation mode.
