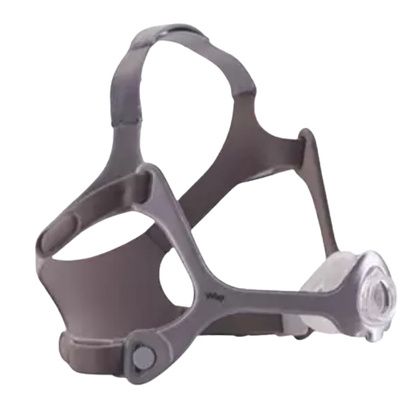

Philips Respironics Wisp Mask with Fabric Frame with Headgear

Features of Philips Wisp Nasal CPAP Mask with Fabric Frame

• Click fit headgear for easy adjustment: The included headgear is easily adjustable to find the perfect fit
• Minimalistic Design: Wisp is designed with few parts, making it easy to use and clean
• Tip-of-the-nose cushion designed for optimal seal: designed to sit below the nose bridge
• Innovative Fabric Frame: This unique frame contours your facial features for a personalized fit
• Open field of vision: Thanks to the open field of vision, your patients can read, watch TV, and even wear glasses before they go to sleep
• Compact design delivers a natural fit: Wisp offers the performance of a nasal mask with the style of a nasal pillows mask

Philips Wisp Nasal Mask User Manual

Frequently Bought Together

• AG Industries Respura CPAP Mask Cleansing Wipes
• Bilt-Rite CPAP White Pillow With Cover
• Vyaire Medical PureSom Ruby Topaz Adjustable Chin Strap

Also Available (Separately)

• Respironics Wisp Nasal CPAP Mask Tubing
• Respironics Replacement Cushion for Wisp Nasal Mask
• Respironics Wisp Nasal Mask Headgear
• Respironics Wisp Nasal Mask Frame

How to use Philips Wisp Nasal Mask?

1. Before putting on the cpap mask, select the cushion that fits the width of the nose without blocking the nostrils. The top of the cushion may sit between the bridge and the tip of the nose.
Note: Use the mask sizing gauge to select the cushion that fits the width of the nose without blocking the nostrils.



2. Disconnect the headgear tab or clip. Peel the headgear tabs away from the headgear strap and pull them through the slot in the mask frame, or if using the clip, twist outward.



3. Pull the headgear over the head and place the cushion over the nose.
Note: The headgear should lie flat against the back of the head.



4.Thread the tab through the slot in the mask frame or press the clip against the headgear slot to reattach.
Note: If the clips are not used, the headgear tabs can be threaded through the slots on the mask frame.



5. Peel the headgear tabs away from the headgear straps and then press them back together to reattach. Connect the side straps to the headgear tab located at the base of the crown strap. Connect the bottom strap tabs near the back of the headgear. Adjust the side and bottom straps evenly.
Note: Do not over-tighten. The headgear should feel loose and comfortable.



6. Connect the Wisp tubing and elbow swivel to the front of the mask. Optionally, slide the mask tubing through the headgear crown loop before pulling on the headgear.



7. Assume different sleeping positions. Move around until comfortable. If there are any excessive air leaks, make final adjustments while lying down.
Note: Using the headgear crown loop can help make some sleeping positions much more comfortable.



What to Consider when Choosing a CPAP Mask?

The selection of the best CPAP mask may depend on the following factors:

• Whether you have facial hair and the amount
• Whether you wear dentures
• The shape and circumference of the head
• The level of movement during sleep
• The length and width of the nose
• The preferred sleep positions
• The material of the mask, headgear, and straps
