Monaghan AeroChamber Plus Z STAT Anti-Static Valved Holding Chamber With ComfortSeal Mask

Aerochamber Plus Z Stat AVHC Features

• Aerodynamic chamber design with AN innovative valve system that separates and filters out coarse aerosol particles
• One-way valve holds and protects aerosol until inhalation begins
• Delivers 22% more of the medication than the original AeroChamber
• Universal MDI adapter allows use with most of the MDIs
• Durable holding chamber made of unique, flexible, shatterproof plastic
• The original valved holding chamber design has evolved into the Monaghan Aero Chamber Plus Z STAT aVHC to provide improved MDI aerosol formulations
• Increased aerosol suspension time
• Optimized delivery system for consistent medication availability substantially equivalent to the MDI dose
• Easy to clean – dishwasher safe
• Recommended by most leading MDI manufacturers

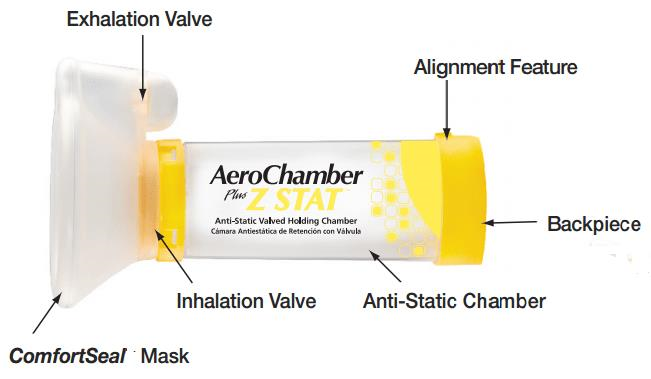

Aerochamber Parts Description (With Mask)

• Exhalation Valve: Easy flow Exhalation Valve minimizes re-breathing and directs exhaled flow away from the face of the patient
• Anti-Static Chamber: Increases aerosol suspension time to assist dose assurance of metered dose inhaler medication
• Inhalation Valve: Low resistance Inhalation Valve makes it easier for patients with shallow or low-volume breathing patterns to inhale the medication
• Backpiece: Universal backpiece fits all commonly prescribed Metered Dose Inhalers and Spacers
• ComfortSeal Mask: It is made of soft, flexible silicone and fits snuggly to the patient's face to ensure a close, comfortable fit that promotes proper drug delivery

Why choose AeroChamber Plus Z STAT?

Aerochamber With Mask Aerodynamic Valve and Baffle Design

• A one-way valve ensures only the right-sized particles exit the chamber through inhalation
• Low resistance and easily opens to allow the patient to inhale without difficulty
• Allows to inhale smaller medication particles for fast and targeted delivery to the lungs
• Prevents the patient from exhaling into the chamber, leaving any remaining medication in the chamber available for the next breath of the patient

Z STAT Aerochamber Anti-Static Chamber

• Anti-Static Chamber of Monaghan Z Stat minimizes static charge, increasing aerosol suspension time within the chamber and making more medication available, unlike the static-prone chambers, where static-charged aerosol particles are used to attach to the chamber walls
• A clear polymer chamber allows the medication to enter the chamber from the MDI inhaler

AeroChamber Plus Z STAT Comfort Seal Mask

• Fits snugly and comfortably on the face
• Makes it easier for children to take their treatments
• Less technique dependent than a mouthpiece
• Secure seal ensures maximized drug delivery and reduced leakage

AeroChamber Plus Exhalation Valve

• Low resistance valve for easy and unrestrained breathing
• Directs the exhaled medication away from the face and eyes
• Latex-free and made of soft, flexible silicone

AeroChamber is User Friendly

• Suitable for smaller children
• Attractive design
• Easy-to-read instructions
• Simple to use and maintain
• Dishwasher-safe components

How AeroChamber Plus Z STAT work?

AeroChamber Z Stat aVHC maximizes medication delivery to the lungs by separating small medication particles from large particles. As the patient inhales, the smaller particles float out of the one-way valve of the chamber into the respiratory tract, where they easily reach those areas of the lungs that need it the most. The Z Stat chamber holds any of the remaining small particles that are not inhaled the first time, which allows the patient to take more than one breath per puff of medicine administered. It is especially helpful for children or others who cannot achieve a high peak expiratory flow (PEF) and assures that the maximum amount of prescribed medicine reaches the lungs for optimum benefit. This model comes with a built-in ComfortSeal mask that makes it easier for children to take their treatments.

When to use Monaghan AeroChamber Plus Z STAT Chamber?

• AeroChamber Z Stat aVHC is intended to be used by patients who are under the care or treatment of a physician or licensed healthcare professional
• This device is to be used by these patients to administer aerosolized medication from Metered Dose Inhalers
• The intended environments for its use include homes, hospitals, and clinics

Monaghan Plus Z STAT Anti Static Valved Holding Chamber Illustration Using With And Without aVHC:

What to buy with an Anti-Static Valved Holding Chamber

Monaghan Aerobika OPEP Therapy System

AIRFREE P1000 Filterless Air Purifier

Smartsilk Asthma and Allergy Friendly The Pillow Protector

How to use Aerochamber Plus with Mask?

	1. Carefully examine the Aerochamber for damage, missing parts, or foreign objects. Any foreign objects should be removed. It should be replaced immediately if there are any damaged or missing parts. If necessary, use the inhaler (MDI) alone until a replacement is obtained. If your symptoms worsen, please seek immediate medical attention
	2. Before use, make sure that instructions supplied with MDI have been read. Remove cap(s)
	3. Shake the MDI well immediately before each use. Insert the MDI into the back piece of the chamber
	4. Apply mask to face and ensure there is an effective mask/face seal. While maintaining an effective mask/face seal, the patient should exhale through the mask
	5. Depress MDI at the beginning of slow, deep inhalation. Hold your breath as long as possible, up to 10 seconds before breathing out. If the patient has difficulty with slow, deep breaths, an alternative is to keep the face tight on a mask and breathe slowly 2-3 times after depressing MDI. Administer one puff at a time
	6. Slow down inhalation if you hear the Flow Signal Whistle sound
	7. Follow instructions supplied with the MDI on the amount of time to wait before repeating steps 3–6 as prescribed

How to clean Monaghan Aerochamber With a Mask?

	1. Remove the back piece only. Do not remove the mask or tamper with valves during cleaning
	2. Soak both parts for 15 minutes in lukewarm water with liquid detergent. Agitate gently
	3. Rinse in clean water
	4. Shake out excess water. Do not rub dry
	5. Let air dry in a vertical position
	6. Replace back piece when the unit is completely dry and ready for use

Cautions:

• To ensure proper performance, it should only be cleaned according to these instructions
• Do not leave the chamber unattended with children
• Federal (USA) law restricts the sale of this device on or by the order of a physician

Useful Guides

• Aerochamber Plus Z Stat AVHC User Manual
• Aerochamber Plus Z STAT AVHC Quick Start Guide-Adult
• Monaghan Aerochamber Plus Z Stat AVHC Quick Start Guide-Child

Frequently Asked Questions

1. What if a patient has difficulty inhaling medication?

The Aerochamber Plus Z Stat AVHC features a highly sensitive inhalation valve designed to accommodate shallow or low-volume breathing, facilitating easier medication inhalation for patients.

2. Is the Aerochamber Plus Z Stat Chamber Anti-static?

Chambers are made with anti-static polymer, preventing static buildup. They remain static-free even when stored in plastic bags and can be used directly from the package.

3. Does the Aerochamber Plus Z Stat Chamber contain BPA?

Chambers are BPA-free, latex-free, phthalate-free, lead-free, and PVC-free.
