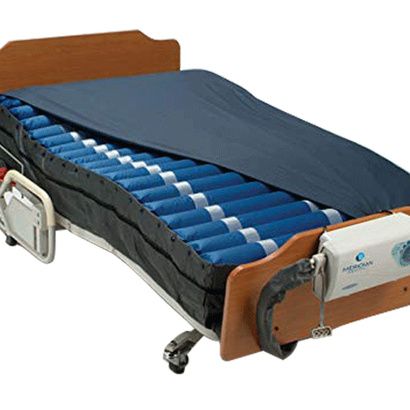

Meridian Ultra Care Xtra Bariatric Alternating Pressure Mattress Features
- Includes
- Mattress
- Cover
- Pump
- Stay-Flate cell-on-cell design provides air base and prevents "bottoming out" and up to 24 hours of power outage protectionÂ
- Pillow function maintains the air cells at the head for patient comfortÂ
- Twenty rows of 10" alternating pressure air cells, nine with laser holes to keep the patient cool and speed recoveryÂ
- Air cells made with nylon/polyurethane for increased durability and reliabilityÂ
- Quick disconnect cells for easy cell replacementÂ
- CPR quick deflate at head of mattressÂ
- Quilted nylon zipper cover is low shear, fluid-resistant, and vapor permeableÂ
- 16 liter-per-minute pump in an easy-to-use designÂ
- Two modes of therapy - static or alternatingÂ
- Five pressure setting for maximum comfort
Cell Construction
- Stay-Flat cell-on-cell design minimizes risk of bottoming out and provides air support during power outages
- Air cells made of nylon/polyurethane for increased durability and reliabilityÂ
- Cells are easily cleaned
Cover
- Zipper cover is quilted vapor permeable nylon
- Water-resistant
- Easy cleaning
- Low shear/low friction
Quick Disconnect Cells
- Quick disconnects allow for easy cell replacement
- Quick disconnect cells allow any area of the mattress to deflated and be zero pressure without affecting alternating benefits
Pump
- High-flow 16 liter-per-minute pumpÂ
- Dual compressor for increased patient comfort and weight capacity (100 lbs.) 10, 15 or 20 minute cycle timesÂ
- Five comfort settings for easy pressure adjustmentÂ
- Automatic reset from static to alternating after 45 minutes
More About Meridian Ultra Care Xtra Pressure Mattress
Quick Inflate Pump (ITEM #90501)
- Reduces inflation time dramatically
- 20 liter-per-minute flow pump
- Rapid deflate for quick transport
- Small and easy to use
Safe-T-Guard Cover (ITEM #SG8_FG)
- Perimeter cover reduces risk of falls and entrapment
- Foam borders are 4" high and sloped inward
- Zippered cover for secure fit
- Water resistant quilted top
Specification
| Particulars |
Specifications |
| Mattress |
 |
| Dimensions |
80"L x 42"W | 48"WÂ x 10"H |
| Cells |
20 rows of cells 10" high, 9 with laser
holes for air loss benefit. Seven inches of
alternating air over three inches of static
air. Cell-on-cell construction prevents
"bottoming out" and up to 24 hours of
power outage protection. |
| Cell Connection |
Quick disconnect cells allow for single
cell removal/replacement. |
| Inflation Time |
25 - 30 minutes with static inflate.
2 - 5 minutes with rapid inflate pump. |
| Material |
Nylon/Polyurethane for durability |
| Weight Capacity |
Up to 1,000 lbs. |
| Mattress Weight |
25-35 lbs. |
| Cover |
Urethane coated nylon that is vapor
permeable and low shear/low friction |
| Base |
Reinforced nylon for durability. Bayonet
type tie connectors to secure mattress to
bed frame |
| Transport Cap |
Located at end of the connector hose
which when inserted, locks and prevents
air loss from the mattress if the pump
loses power or is disconnected. |
| Additional |
System uses modular components which
allows for simple part replacement.
CPR quick deflate at head of mattress. |
| Pump |
 |
| Input Rating |
AC 120V 60 Hz, 1 A |
| Pressure Range |
20 - 70 mmHg ± 10% |
| Power Cord |
SJT 14 Feet, 3 Prong |
| Air Output |
16 LPM |
| Pressure Range |
20 ~ 50 mmHg |
| Cycle Time |
10, 15, 20 cycle times selectable |
| Dimensions: |
15.75"L x 5.5"W x 8"H |
| Safety Code Approval |
UL 544 & CSA |
| Additional |
Five comfort settings.
Audible and visual alarms for air
pressure and power supply.
Retractable bed hooks for bed use. |
Warranty
Two year warranty on mattress and pump
