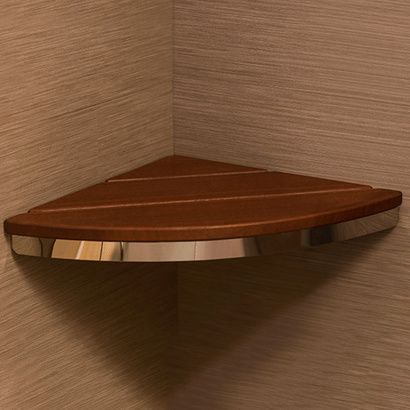

HealthCraft Invisia Bamboo Corner Shower Seat

Key Features of Invisia Shower Seat

• Bamboo Seat:
  - Sustainable, hypoallergenic and naturally resistant to moisture, temperature and bacteria
• Frame is made from durable, rust, resistant aluminum
• Each slat is finished with Rubio Monocoat, an extremely durable 2-part natural oil finish that does not contain volatile organic compounds (VOCs) or other harmful chemicals
• Only, contact with direct sunlight causes the seat to weather over time (similar to other woods)
• Supports up to 500lbs (227kgs) when installed to structural wood backing
• Solid construction and mounting
• Hidden mounting brackets
• Decorative metal trim
• Contents:
  - Corner Seat
  - Wall Bracket (x2)
  - Metal Trim
  - 10 x 2" Wood Screw, S/S (x8)
  - Lock Washer, S/S (x8)
• Instruction Manual

Installation Instructions for Corner Shower Seat

• Mark of the desired location for top surface of seat
• Wall bracket holes should be 1-7/8" / 48mm lower than the top surface of the seat. Use level to mark center line
• Untighten screws to remove the metal trim. This will allow better access to the mounting holes of the wall brackets
• The wall brackets are designed to be outwardly adjusted to accommodate corners that are slightly greater than 90 degree
• To ensure both wall brackets make full contact with the walls, untighten screws and shift wall brackets accordingly
• Position bracket holes over the center line and mark locations
• Notch the tile with the center punch
• Drill pilot holes for fasteners
• Fasten the Corner Seat to the wall using lock washers and appropriate fasteners and waterproofing. Inspect hardware regularly, and tighten if required
• Re-install metal trim onto the bottom of the seat
