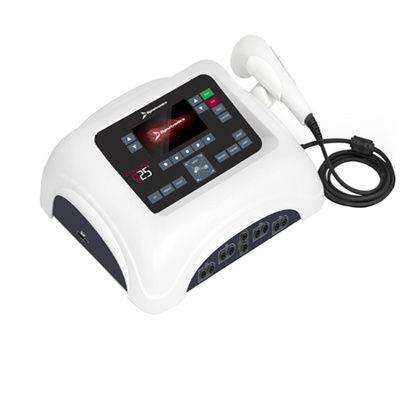

Dynatronics 25 Series Combo Stim Ultrasound

Stim Ultrasound Features

• Most treatments can be set up in as few as three key presses
• Treatment parameters are highly visible, easy to read, and changed at the touch of a fingertip
• Deliver up to five channels of stimulation and ultrasound all at the same time
• Allows focused treatment by simply gliding finger across the target touchpad
• It is enhanced by the addition of one of the applicator soundheads, available in 5 cm (WSH05) size.
• Available on all 25 series electrotherapy devices
• 1 MHz for deep treatments
• 2 MHz for moderate depth
• 3 MHz for superficial depth

How to set-up the device?

1. Insert the power cord into the back of the 25 Series’ Console.
2. Plug the power cord into a wall outlet.
3. Ultrasound - Plug soundhead into the console (if applicable).
4. Power - Turn on the power switch located on the back of the console.
5. Patient Leads - Attach patient lead(s) to the console.
6. Patient - For electrode treatments, attach electrodes to appropriate sites.
7. Activate Modality - Select the desired modality by pressing the keys located on the console’s faceplate.
8. Settings - Select frequency, intensity, time, or any other applicable options for the modality selected by using the toggle keys that surround the display window.
9. Stop - When the treatment time has elapsed, the current to the patient stops and a tone sounds signaling the end of a treatment. Treatments in progress may be stopped at any time using one of the following methods.
10. - Stop One Treatment Only - Press and hold the function key and press stop. This stops only the treatment in focus (illuminated green).
    - Stop All - Press the stop key. All treatments at all channels will stop.
