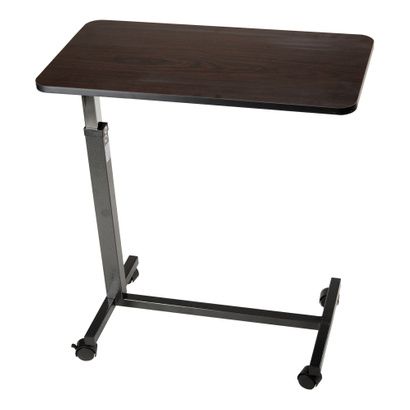

Dynarex Economy Overbed Table

Features of Dynarex Bed Table

• Heavy duty, steel-welded H-base frame
• Distributed overbed table weight capacity 50 lb.
• Spring-loaded locking lift mechanism adjusts table height: 29”-45”
• Table rolls back and forth for users to easily access their meals from a seated or reclining position
• Often used in retirement homes, rehabilitation facilities, hospitals, homes, and more

Dynarex Economy Overbed Table User Manual

What are the parts of Dynarex 10450 Table for Bed?

• Table Top
• Mast
• Base
• Bolt Plate
• Trip Lever
• Black Screw
• Casters with Lock (2 each)
• Mounting Bracket
• Casters without Lock (2 each)
• Bolt Sleeves (2 each)
• Chrome Screw (to replace #13 black screw)
• ¼″-20 × 2⅛″ Bolt & Nut (1 each)
• ¼″-12 × ¼″ Domed Phillips Head Bolt & Locking Washer (2 each)
• Trip Rod ¼″ × 20 ½″ (inside Mast)
• ⅜″-15 × 2″ Bolts (2 each)

What to buy with Overbed Tables

• Fabrication Blanket Lift Bar
• Dynarex Homecare Bed Assist Rail
• Rigid Leg Lifter

How to Install Dynarex Over the Bed Table?

1. Turn the Mast right side up. Ensure Trip Rod is visible inside the rectangular tube and not protruding out of the tube. If necessary, shake the Mast until the Trip Rod drops into place inside the Mast. Next, insert the Trip Lever with the flat side facing down into the Mast.
2. Lay the Table Top upside down on a flat surface with Mounting The bracket faces upward. While holding the Trip Lever securely inside the Mast, turn the Mast upside down, and insert it into the Mounting Bracket.
3. Align the hole in Mounting Bracket with a hole in the Mast and the hole through the Trip Lever. Insert ¼″-20 × 2⅛″ Bolt through all the aligned holes and secure with Nut. Tighten with a wrench.
4. Install two Domed Phillips Head bolts and Locking Washers through the vertical holes in the Mounting Bracket and into the threaded holes in Mast.
5. Install two Casters with Locks into the Base, on the side with 2 holes. Install two Non-Locking Casters into the base on the side opposite the 2 holes.
6. Install two Bolt Sleeves into upside down Base and then position two Bolts through Bolt Plate) and into Bolt Sleeves. Position the Base over the Mast, thread bolts into the bottom of the Mast, and tighten using a wrench.
7. Turn the table upright onto the casters.
8. Remove the Black Screw in the Mast collar labeled “Remove for Assembly” and replace it with the Chrome Screw contained in the hardware package. Do not remove Chrome Screw labeled “Do Not Remove.”

How to adjust the table height of the Dynarex bed table?

1. Gently squeeze the Trip Lever up towards the tabletop.
2. Adjust the tabletop to the desired height.
3. Check that the Trip Lever is properly engaged before use.
