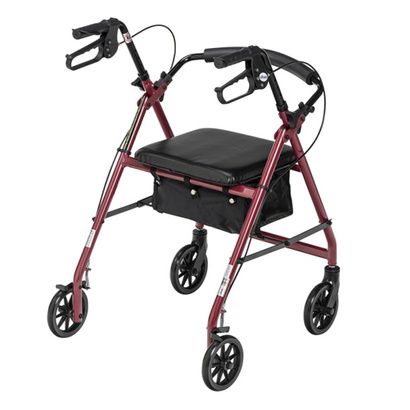

Drive Aluminum Rollator With Fold Up and Removable Back Support and 7.5" Casters

Drive Aluminum Rollator Walker With Fold Up and Removable Back Support Features

• Has to fold up and removable backrest for easy storage and transportation
• Has four 7.5" casters that provide smooth, stable movement on most indoor and outdoor surfaces
• Ergonomic handles are easy to grip and are adjustable
• Zippered pouch under seat for added privacy and security of personal items
• Hand-operated brakes that can be locked in place to prevent the rollator from rolling away
• Comes with a comfortable, durable padded seat
• Lightweight rollator walker with 14 lbs of weight
• Weight capacity: 300 lbs

Drive Rollator Parts

• A - Backrest for extra support


• B - Orthodic Hand Grips


• C - Loop Locks Safest System Available


• D - Height Adjustable


• E - Wide, Comfortable Seat


• F - Folding Hinge for Portability


• G - Hanging Bag for Functionality & Storage



Frequently Bought Together

• Vive Rollator Bag
• ByACRE Carbon Fiber Rollator Cane Holder
• Mabis DMI Switch Sticks Folding Walking Stick

How to use Drive Aluminum Rollator?

Assembling Instructions

1. First, remove all contents from the carton: backrest, handle with a tube, Rollator frame, and Basket.
2. Open the frame and slide the padded backrest into frame brackets, ensuring snap bottoms protrude through holes.
3. Unscrew the tightening knob from the handle and insert the handle tube into the frame at the desired height, lining up the holes appropriately.
4. Slide bolts through holes from the inside and screw on the tightening knob until secure.

Adjusting the hand brake system

1. Hold firmly in place. Do not turn.
2. To tighten the hand brake adjustment, turn the nut clockwise.
3. To loosen the hand brake adjustment, turn the nut counterclockwise.

Loop Lock Operation

Always engage and disengage wheel locks on both sides simultaneously.

1. To slow down or come to a temporary stop:
   • Pull up slowly on the loop locks with four fingers until the unit slows down or temporarily stops.
2. To temporarily lock the wheels in position:
   • Press down on both loop locks with palms until you hear a click that will tell you the wheels are locked.
3. To release wheel locks:
   • Push up on both loop locks with the palms of your hand to the original position.
