Baseline Large Joint Arthrodial Protractor Goniometer

Baseline Large Joint Goniometer

• Measures ROM of all major articulations
• Used to establish a baseline for the initial evaluation of a patient
• Bubble level reduces user error
• Effective diagnostic tool for clinical and hospital environments
• Documents progress or change as the patient is being treated
• Weight: 2 lbs

Calculating ROM With Large Joint Goniometer

• Large Joint Goniometer is used to measure joint limitation in both active and passive movement.

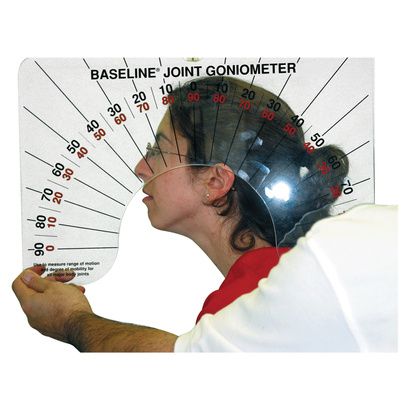

• Place the focus of the goniometer at the pivot point of the joint to be measured.
• Have the patient flex, extend, abduct, or rotate, and read the degree measurement as you would read a protractor.
• Calculate the range of motion by noting the change in degrees from the starting position to the flexed position.
