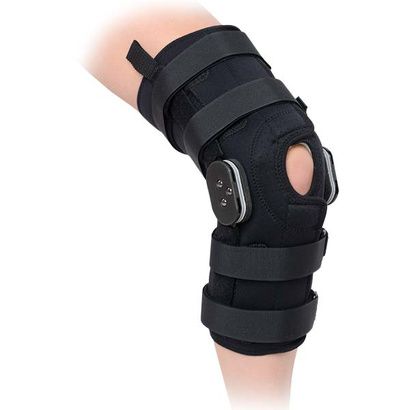

Advanced Orthopaedics TM Wrap Around Hinged Knee Brace

Features

• Advanced Orthopaedics TM Wrap Around Hinged Knee Brace is indicated for:
  - Mild injuries of the meniscus mild instability
  - Patellar retinaculum injuries
  - Post op knee rehabilitation
  - Mild sprains of the medial or lateral collateral ligaments
• Polycentric hinge provides extension
• Stops of 0°, 10°, 20°, 40°, 60° and 90°
• For sizing, measure around the center of the knee with leg extended

More Information

• How to Apply:
  First set the hinge to the desired flexion/extension settings (see below). Unfasten all straps and closures. Pull the brace over the knee with the patella opening centered on the kneecap and the medial/lateral hinges aligned with the center of the knee joint. Support should fit snug but not so tight as to restrict circulation. The center of the hinges should be aligned with the prominent bones on each side of the knee. Secure straps beginning with the top strap. Feed straps through rings and secure.
• Setting the Hinge:
  The caregiver should determine the correct setting for the condition. Each hinge can be set at flexion, extension or both.
  - Remove hinge from pocket.
  - Open hinge cover and remove pins (4 total).
  - Set flexion first by moving hinge arms until an opening is seen through the desired flexion setting. Drop pins into desired setting, snapping them into place. Set both sides of the hinge (left/right) at the same degree of flexion.
  - Set extension by moving hinge arms until an opening is seen through the desired extension setting. Drop pins into desired setting, snapping them into place. Set both sides of the hinge (left/right) to the same degree of extension.
  - Close hinge cover.
  - Insert hinge back into pocket.
• Care Instructions:
  - Fasten closures.
  - Hand wash in cold water with mild soap.
  - Wrap in a towel to remove excess water (do not twist or wring).
   Air dry away from heat.
  - Do not tumble dry.
  - Do not bleach.
• Caution:
  - Wear as recommended.
  - Always consult a physician when encountering persistent pain, discomfort, inflammation, or swelling.
• Warning:
  - Contact neoprene material with skin may cause irritation.
  - Persons with a known susceptibility to dermatitis or with broken skin should avoid contact with neoprene.
  - Anyone who develops skin irritation from contact with this material should discontinue its use immediately.
  - Should not be worn by persons with phlebitis or circulatory disorders.
  - Not recommended to be worn while sleeping.
