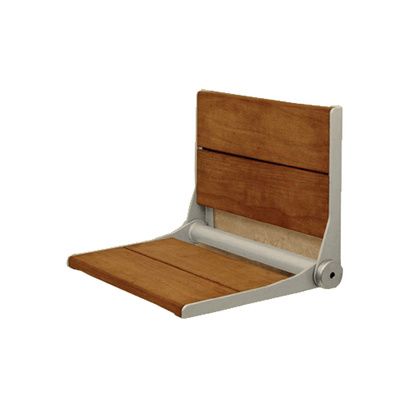

HealthCraft Invisia Serena Wall Mounted Shower Seat

Features of HealthCraft Invisia Shower Seat

• Exceptionally solid wall mounted fold down shower seat with a slim profile
• Wall mount brackets maximize wall contact and spread the weight-bearing surface for an exceptionally solid feel
• Removable backrest allows access to wall tiles for easy cleaning
• Brushed aluminum frame accents the natural beauty of the Brazilian walnut panels
• Offers added support and bathroom safety
• Removable back rest conceals the screws of the mounting brackets
• Great addition to any shower
• Folds up against wall to store out of the way when not in use
• Engineered bamboo panels are sustainable and hypoallergenic
• Resistant to moisture, temperature and bacteria
• Frame made from rust resistant aluminum
• Supports upto 400lbs/181kg

Invisia Serena Seat User Manual

What to buy with Shower Seats

• Adjustable Height Bath Step
• 24Inch Wall Bar Unit With Ultra Flex Hose
• Medline Rubber Bath Mat

How to Install this Wall Mounted Shower Seat?

1. Slide top panel off of frame.
2. Mark the location on the wall of the top hole of the frame (to position the seat surface at the required height).
3. Drill pilot hole for fastener.
4. Fasten the frame to the wall using appropriate fastener and waterproofing.
5. Use a level to ensure the seat is level and mark location on the wall of top hole on the frame.
6. Drill pilot hole for fastener.
7. Fasten the frame to the wall using appropriate fastener and waterproofing.
8. Repeat step 6 and 7 for remaining holes (x6)
9. Slide top panel onto frame.
10. Inspect hardware regularly, and tighten if required

Where to locate the wall mounted shower seat?

• To determine the optimal mounting location, we recommend consulting with an appropriate healthcare professional.
• If side wall (to faucet) is less than 36" / 914mm, seat can be mounted on the back wall.
• If side wall (to faucet) is greater than 36" / 914mm, seat can be mounted on side wall (less than 24" / 610mm from faucet wall).
• ADA recommend seat height from finished floor 17-19" / 432-483mm.

Installation Warnings:

• Seat must be installed to walls that are structurally sound.
• If desired installation location does not have adequate structure, add wood blocking.
• Do not install if structure behind walls is unknown.
• Do not install into metal studs.
• Do not install in fiberglass / acrylic shower enclosures with insufficient stiffness and strength.
• Add wood blocking if required.
• Do not use seat for purposes other than sitting.
• Do not eat more than 1 person at a time.
• Gap between wood and wall.
• Pinch points present when folding seat.
• Seat and bathtub are slippery when wet.

How to clean it?

• Weekly cleaning is recommended for Invisia shower seat.
• Use mild soap and water with a soft cloth as necessary.
• Wipe down damp surfaces of serena shower seat with dry cloth.
• Always wipe in the direction of the wood grain.
• Do not use abrasive cleaners or commercial cleaning products.
• Do not use wire brushes, steel wool or abrasives (pad, papers, cloths, etc.).
